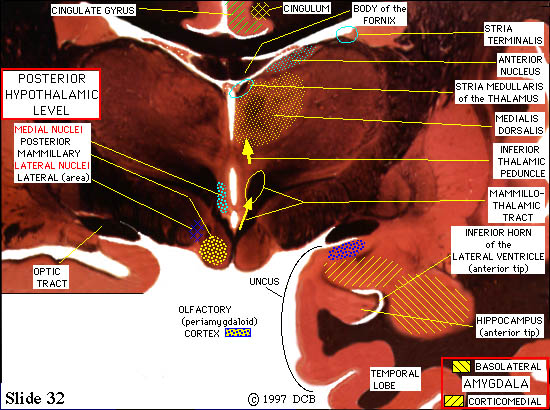

TRIP 2 #10 - The fornix has entered the lateral side of the mammillary nucleus and is no longer apparent. Check Figure 13-1 and Old Fig 11 to confirm that we have completed the first link of the Papez Circuit. The next link is the mammillothalamic tract. You can see it, in this section, departing from the medial edge of the mammillary nucleus and heading dorsally. NEXT

LIMBIC SYSTEM - THE POSTERIOR HYPOTHALAMUS and AMYGDALA
UNLABELED ATLAS - 1 - 2 - 3 - 4 VISION THALAMUS
