MODULE 11 - SECTION 6 - THE LATERAL GENICULATE NUCLEUS

The

LABELED STRUCTURES on a LATERAL VIEW of the BRAINSTEM

     As you recall, all sensory pathways (except olfaction) pass through a thalamic relay nucleus on the way to the cerebral cortex. The lateral geniculate nucleus is the thalamic relay nucleus for the visual system. It is shown, but not labeled, here, where it appears to rest on the dorsolateral edge of the cerebral peduncle.
1

LABELED STRUCTURES on a
DORSAL VIEW of the BRAINSTEM

     Here it is on a dorsal view of the brainstem that you have seen often, in earlier modules.

2

SLIDE LEVELS on a LATERAL VIEW of the BRAINSTEM

3





THE VISUAL PATHWAY on SLIDE 25


4





THE VISUAL PATHWAY on SLIDE 24

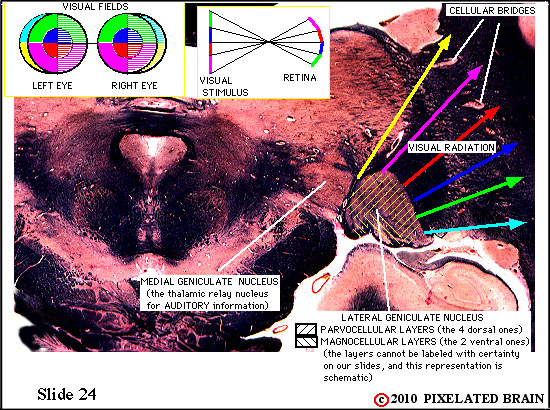

     Slide 24b (the same slide 24 with a different overlay) outlining the parvocellular and magnocellular layers of the geniculate.

5





THE PUPILLARY LIGHT REFLEX PATHWAY shown on SLIDE 24

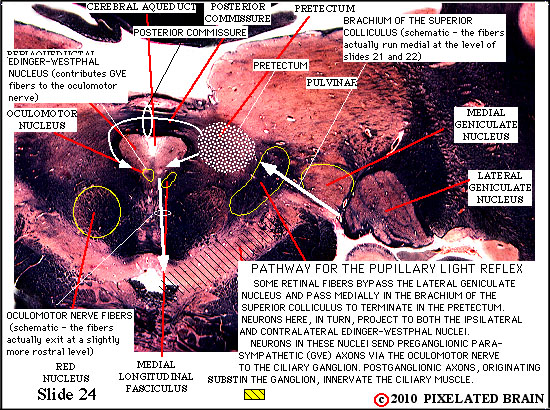

     Same slide as above, outlining the pathway involved in the pupillary light reflex.

6

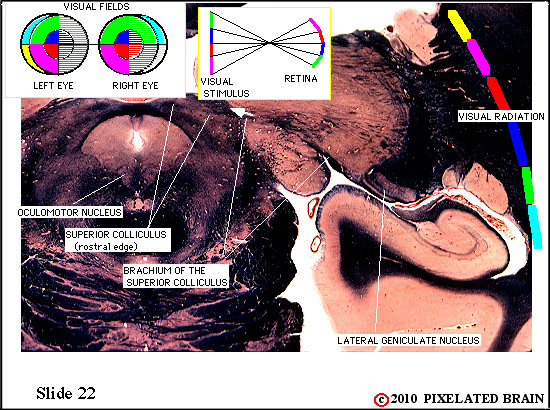

THE VISUAL PATHWAY on SLIDE 22
7





Cu Slide 20 cu20_1_vis.jpg

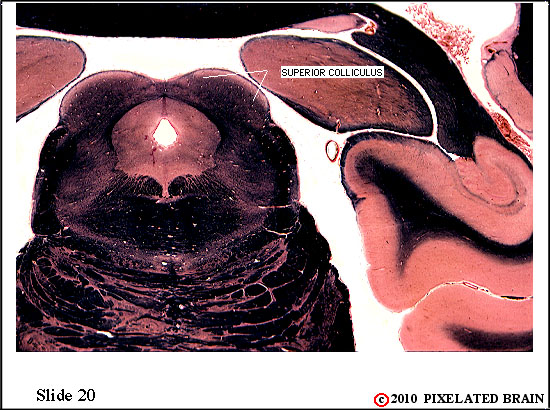

     All we have here is the superior colliculus.

8
